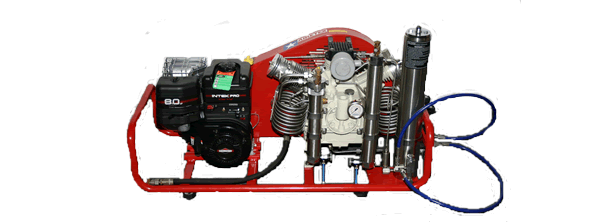

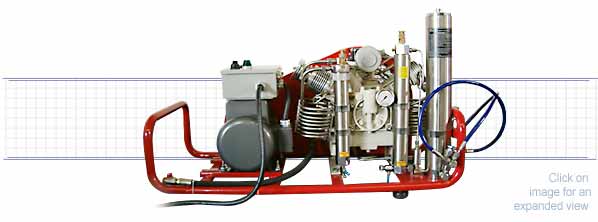

AireTex W32 Mariner is a 5000 PSI compressor rated at 8.4 CFM actual (12.1**SCFM) Poratable and durable. Like all AireTex compressors this is very quiet and powerful. Add Auto-Drains and Pressure switch option to the electric models for only $1295. The W32 Mariner is available with gas Entec power or electric for the same low price (Honda power optional)
Air Quality meets and exceeds CGA G7.1 Grade E and NFPA 1500 requirements. |
Performance and General Data
ALKIN MODEL |
W32-4- 310-P4N |
W32-5P- 310-P4N |
W32-5- 310-P4N |
W32-6P- 310-P4N |
BARS |
310 |
310 |
310 |
310 |
Psi |
5000 |
5000 |
5000 |
5000 |
lt/min |
170 |
170 |
234 |
234 |
Cfm |
6 |
6 |
8 |
8 |
Lbs |
382 |
388 |
390 |
397 |
Scope of Supply ‚ Standard Packages
- 3 stage Compressor Units with Stainless Steel Valves
- Low speeds and Heavy Construction for Long Life
- Pressurized Lubrication on Second and Third Stages
- Safety valves on Each Stage
- Moisture separators for 2nd and 3rd Stages
- Stainless Steel Intercoolers and Aftercooler
- Manual control condensate drain units for moisture separators
- Totally enclosed intake filter assembly
- 5 HP or 7.5 HP Electric Motor with on/off Switch and Hour Meter
- Optional Honda or Equivalent Gas Motor
- Stainless Steel Purifier unit
- Refillable Purifier Cartridges for Cost Saving
- Lawrence Factor Filters Available
- Oil pressure gage
|
|
|
Airetex is the American distributer of LM.NT nitrox products |
