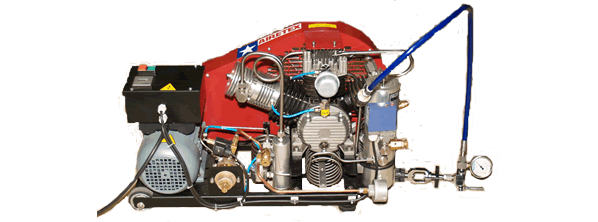

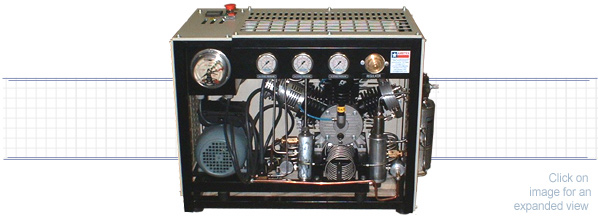

The W31AD and W31E is designed for the small dive shop or Paintball Shop that requires high pressure breathing air with little supervision. This model has the proven durable W31 compressor with the addition of Auto-Drains and Pressure Switch to automatically keep your cascade system topped off with clean, dry air. The W31AD is an open model and the W31E enclosed has a enclosed frame with gauges on all stages.
Performance and General Data
AireTex MODEL |
W31E |
W31AD |
| Operating Pressure |
4500 |
4500 |
| Max pressure |
|
5000 |
| Charging Rate |
|
3 CFM(4.3**SCFM) |
| Electric HP |
3hp |
3hp |
| Number of Stages |
3 |
3 |
| Weight Lbs |
195 |
129 |
Scope of Supply ‚ Standard Packages
- 3 stage compressor4500 TO 5000 PSI
- Low Speeds and Heavy Construction for Long Life
- Pressure Switch for Automatic Start and Stop
- Auto-drains on Second and Third Stages
- Vibration Mounts
- Stainless Steel Valves and Cooling Coils
- Universal House Assembly to Fit 300 DIN and SCUBA tanks
- Hour Meter Start Stop and Emergency Stop Switches
- 3 HP 220v Single Phase Electric Motor (120v Single phase or 230v Three phase optional)
|
|
|
